Product Description

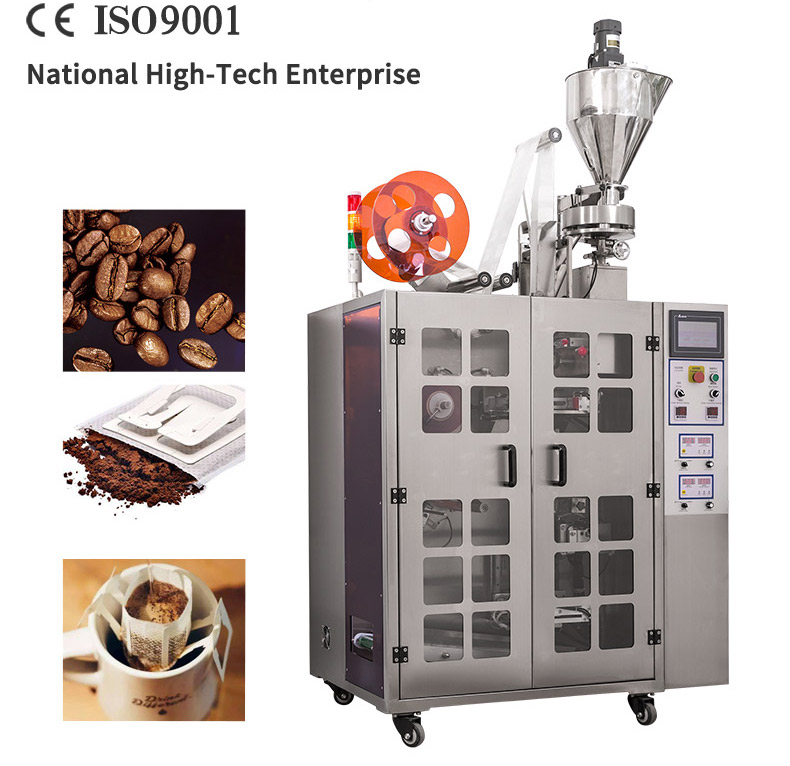

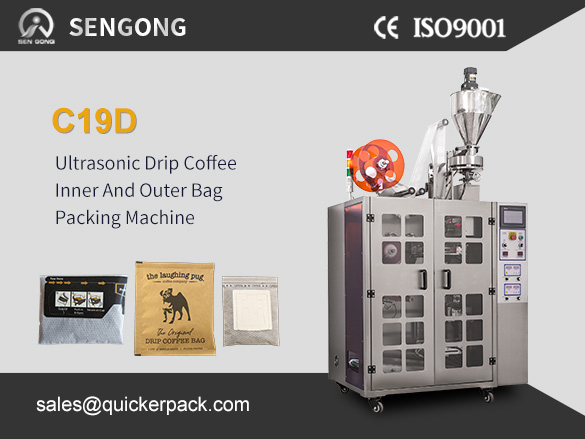

C19D Automatic Drip Coffee Bag Packing Machine with Outer Envelope




Type: Drip Coffee Packing Machine Series

Product model: C19D

Product name: Ultrasonic Drip Coffee Inner and Outer Bag Packing Machine

Purpose: Outer bag sealing controlled by the servo motor,bag length positioning is accurate and stable.

Feature: Outer bag sealing controlled by the servo motor, bag length positioning isaccurate and stable.

Adopts PID temperature controller for more accurate temperature adjustment.Adopts PLC control system, human-machine interface, it is very easy to operate.

All parts in direct contact with products are made of suS304 stainless steel,ensuring reliable products output conforming to food sanitary standards.

Some parts of the cylinder are imported, ensuring the accuracy and stabilityof performance.

Optional devices: flat cut device, date printer, easy tear device, etc.

Packing Material: Paper/Plastic,Plastic/Aluminum/Plastic,PaperlAluminum/Plastic, Drip coffee filter paper



Bag type: 3 side sealing

Outer Bag size: L:85~120mm,W:75~100mm (Film width200mm, Bag size: 120*100mm)

lnner Bag size: L:50~75mm,W:50~90mm (Filter paperwidth 180mm, Bag size: 90*74mm)

Packing speed: 30~45 bags/min

Filling range: 5~15g accuracy士0.1g/bag

Power: Single phase, 220V, 50HZ,3.7KW

Air supply: ≥0.6Mpa(optional with air compressor)

Weight: 680KG

Dimension : L1400mm*W900mm*H2450mm
