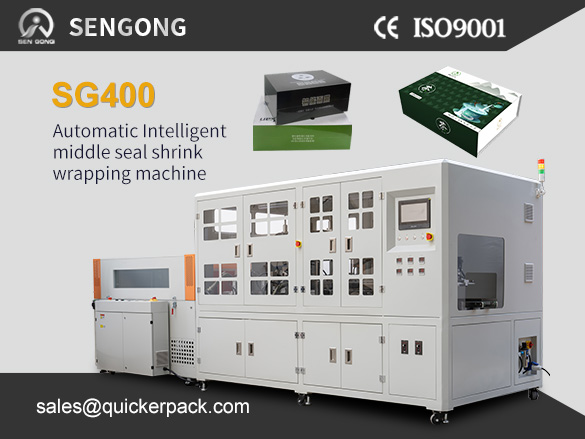

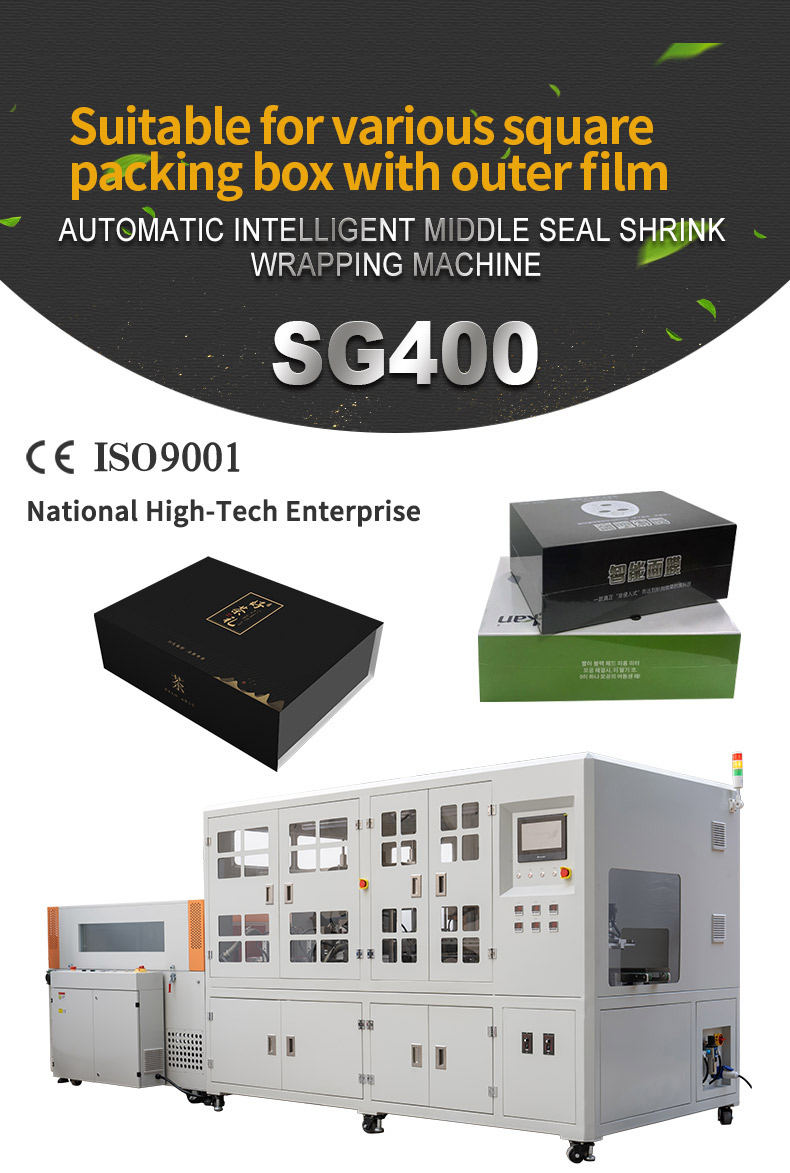

SG400 Automatic Heat Shrink Film Machine
Product Name: SG400 Automatic Heat Shrink Laminating Machine
Range: all kinds of square packaging box outer film.

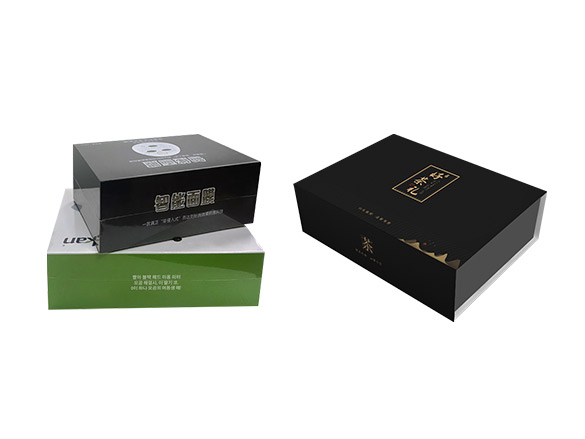

Purposes: medicine boxes, food boxes, health care product boxes, cosmetic boxes, tea boxes, mobile phone boxes, mobile phone battery boxes, mobile power boxes, data cable boxes, tablet computer boxes and other products that need to be coated, which can prevent moisture, moisture, Aesthetically pleasing while maintaining the integrity of the inner item.
Features:
1. Fully automatic bag making, sealing, film trimming and corner cutting.
2. It is fully controlled by PLC, and the human-machine interface text alarm light can realize the function of unmanned supervision.
3. Universality is achieved through servo drive position parameter adjustment and mechanical manual adjustment.
4. Fully automatic packaging POF cross-linked shrink film is faster than traditional manual packaging, with better quality, improved production efficiency, saved production costs, and improved the company's competitiveness.

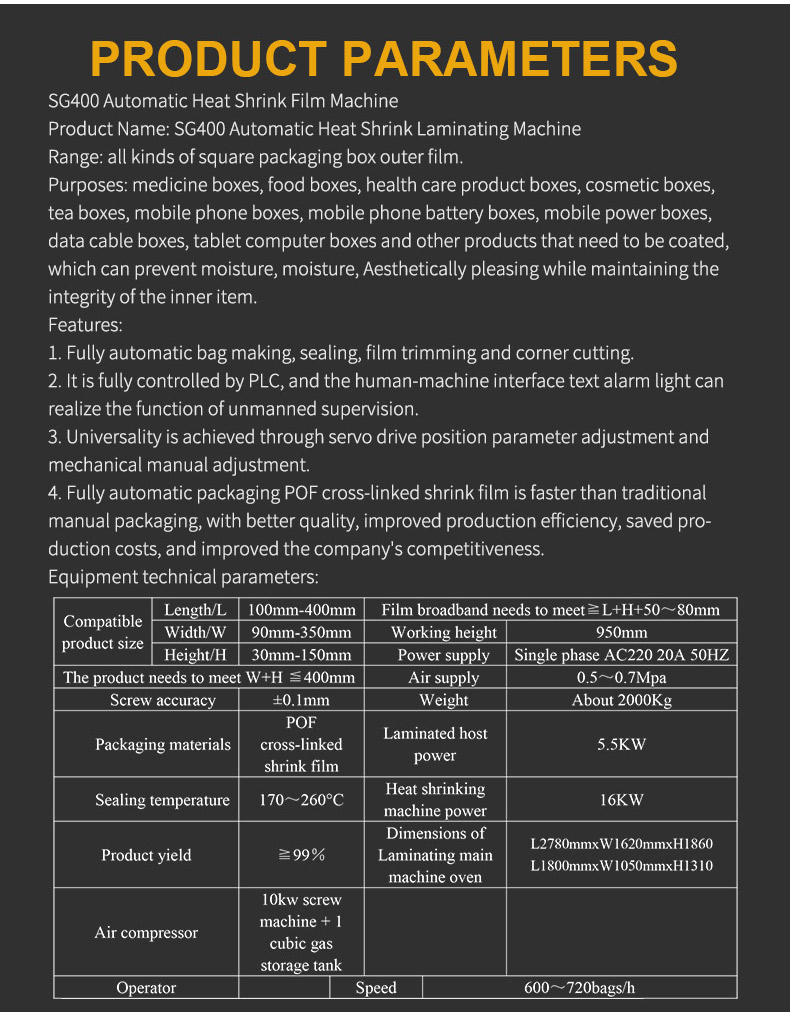

Equipment technical parameters:
Compatible product size | Length/L | 100mm-400mm | Film broadband needs to meet≧L+H+50~80mm | |
Width/W | 90mm-350mm | Working height | 950mm | |
Height/H | 30mm-150mm | Power supply | Single phase AC220 20A 50HZ | |
The product needs to meet W+H ≦400mm | Air supply | 0.5~0.7Mpa | ||
Screw accuracy | ±0.1mm | Weight | About 2000Kg | |
Packaging materials | POF cross-linked shrink film | Laminated host power | 5.5KW | |
Sealing temperature | 170~260°C | Heat shrinking machine power | 16KW | |
Product yield | ≧99% | Dimensions of Laminating main machine oven | L2780mmxW1620mmxH1860 L1800mmxW1050mmxH1310 | |
Air compressor | 10kw screw machine + 1 cubic gas storage tank | |||
Operator | Speed | 600~720bags/h |
