Product Description

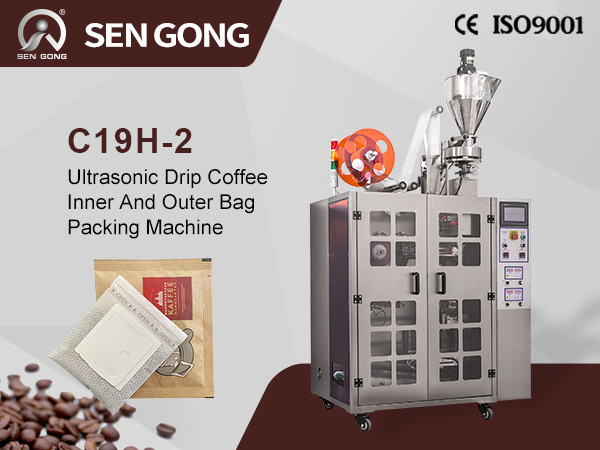

C19H Automatic Ultrasonic Drip Coffee Bag Packing Machine

drip tea bag packing machine
Application:
It is suitable for 5 to 15gram drip coffee inner and outer bag packaging.

Features:
1. Outer bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.
2. Adopts PID temperature controller for more accurate temperature adjustment.
3. Adopts PLC control system and touch screen color monitor device, machine is very easy to operate.
4. The main machine parts is made of SUS304 stainless steel, so it ensures hygiene products output.
5. Some cylinders are imported, ensuring the accuracy and stability of the machines’ performance.
6. It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.
7. Adopts automatic conveyor system.
8. Options: Date code printer.
9. There is a reserved connector to link with nitrogen making machine so as to flush nitrogen into the bag to extend its shelf life.
10. Adopts high specifications components.
Costa Rica Drip Coffee Bag Packing Machine
Standard Technical Data
Type Drip Coffee Packaging Machine Series
Model C19H
Product name Automatic Ultrasonic Drip Coffee Bag Packing Machine with Outer Envelope
Bag type Ultrasonic sealing
Packing material Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic,
Filter paper
Feeding system Volumetric cup filler
Package range 5-15g
Inner bag size L:50-75mm , W:50-90mm
Outer bag size L:85-120mm , W:75-100mm
Inner bag film width (180mm) Bag size: L90mm*W75mm
Outer bag film width(200mm) Bag size: L120mm*W100mm
Power supply Single phase, 220V, 50HZ, 3.7KW
Packing speed 30-60bags/min
Weight 600KG
Dimension (L*W*H) 1200*900*1900mm
