Canada green tea pyramid tea bag filling machine

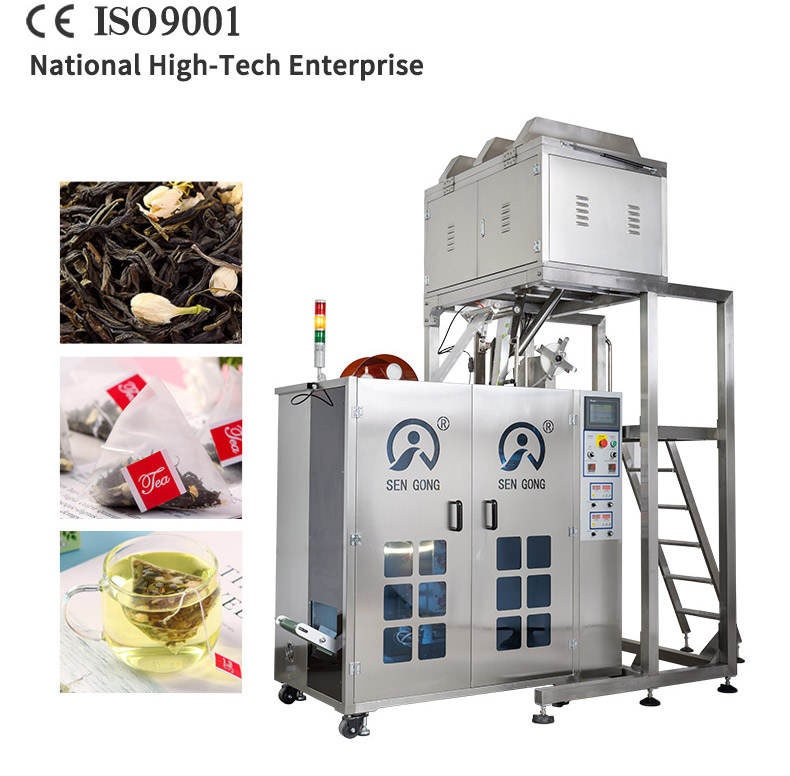

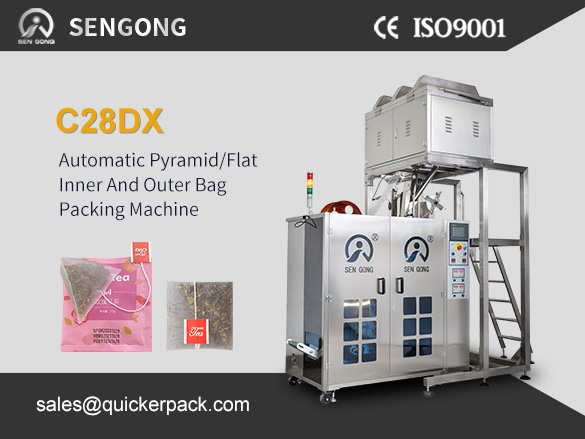

C28DX Automatic Nylon Pyramid/Flat Inner and Outer Bag Packing Machine

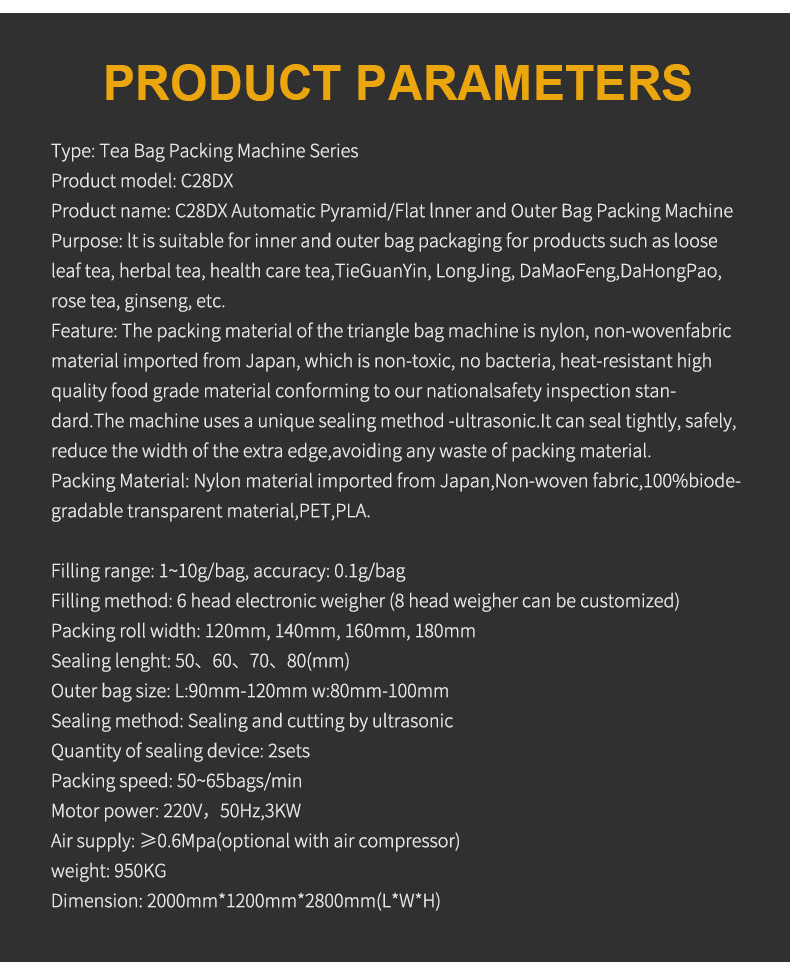

Type: Tea Bag Packing Machine Series

Product model: C28DX

Product name: C28DX Automatic Pyramid/Flat lnner and Outer Bag Packing Machine

Purpose: lt is suitable for inner and outer bag packaging for products such as loose

leaf tea, herbal tea, health care tea,TieGuanYin, LongJing, DaMaoFeng,DaHongPao, rose tea, ginseng, etc.

Feature: The packing material of the triangle bag machine is nylon, non-wovenfabric material imported from Japan, which is non-toxic, no bacteria, heat-resistant high quality food grade material conforming to our nationalsafety inspection standard.The machine uses a unique sealing method -ultrasonic.It can seal tightly, safely, reduce the width of the extra edge,avoiding any waste of packing material.

Packing Material: Nylon material imported from Japan,Non-woven fabric,100%biodegradable transparent material,PET,PLA.

Filling range: 1~10g/bag, accuracy: 0.1g/bag

Filling method: 6 head electronic weigher (8 head weigher can be customized)

Packing roll width: 120mm, 140mm, 160mm, 180mm

Sealing lenght: 50、60、70、80(mm)

Outer bag size: L:90mm-120mm w:80mm-100mm

Sealing method: Sealing and cutting by ultrasonic

Quantity of sealing device: 2sets

Packing speed: 50~65bags/min

Motor power: 220V，50Hz,3KW

Air supply: ≥0.6Mpa(optional with air compressor)

weight: 950KG

Dimension: 2000mm*1200mm*2800mm(L*W*H)
