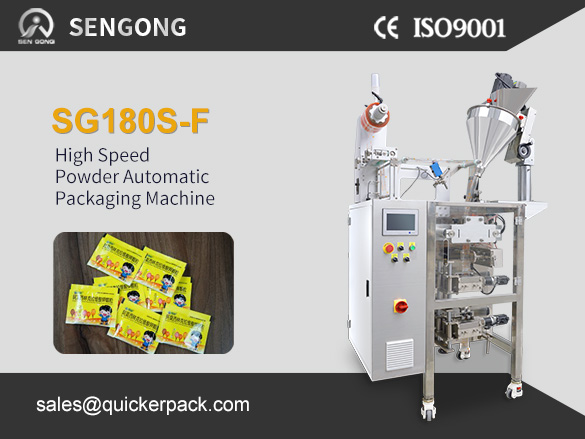

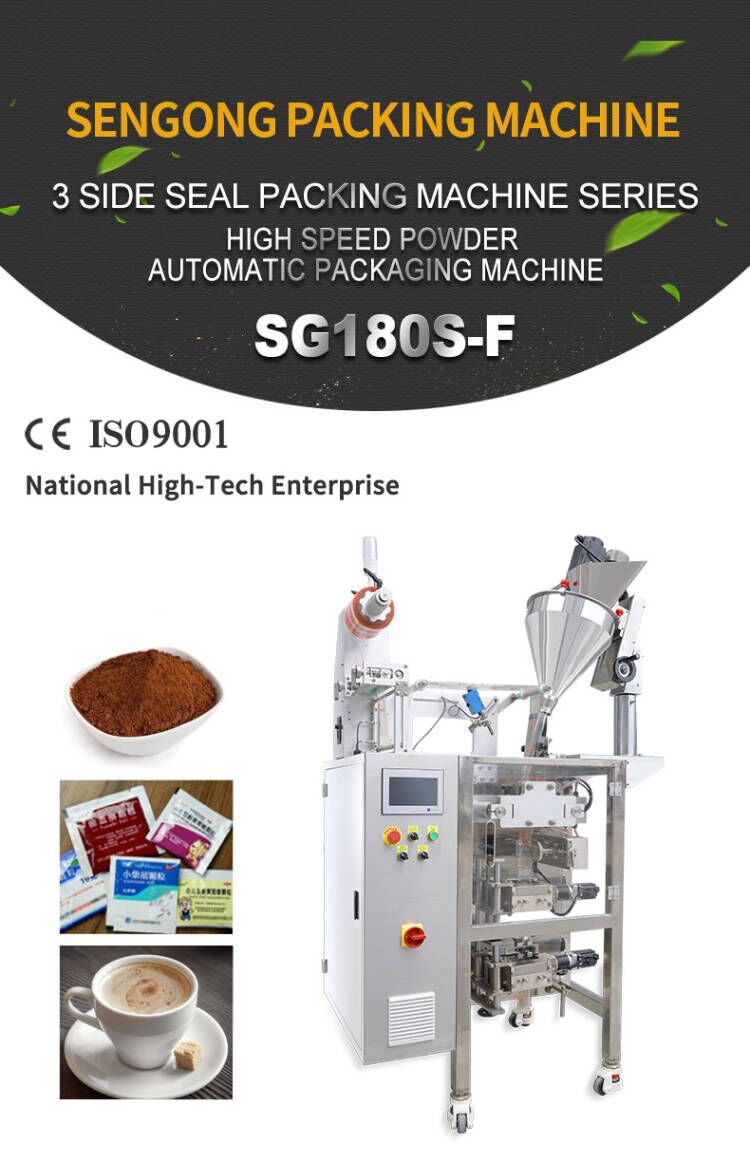

SG180S-F High speed powder automatic packaging machine

SG180S-F high-speed powder automatic packaging machine performance parameters

Detailed parameters and configuration

Equipment Introduction

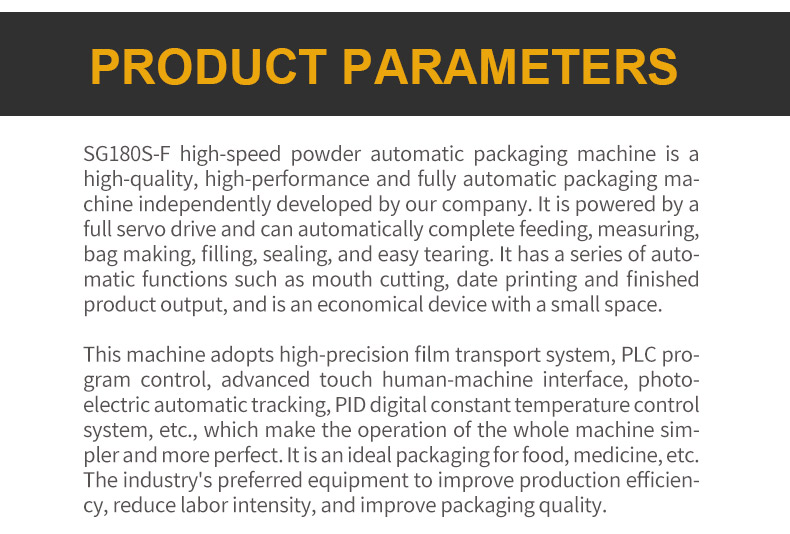

SG180S-F high-speed powder automatic packaging machine is a high-quality, high-performance and fully automatic packaging machine independently developed by our company. It is powered by a full servo drive and can automatically complete feeding, measuring, bag making, filling, sealing, and easy tearing. It has a series of automatic functions such as mouth cutting, date printing and finished product output, and is an economical device with a small space.

This machine adopts high-precision film transport system, PLC program control, advanced touch human-machine interface, photoelectric automatic tracking, PID digital constant temperature control system, etc., which make the operation of the whole machine simpler and more perfect. It is an ideal packaging for food, medicine, etc. The industry's preferred equipment to improve production efficiency, reduce labor intensity, and improve packaging quality.

Classification parameters：SG180S-F

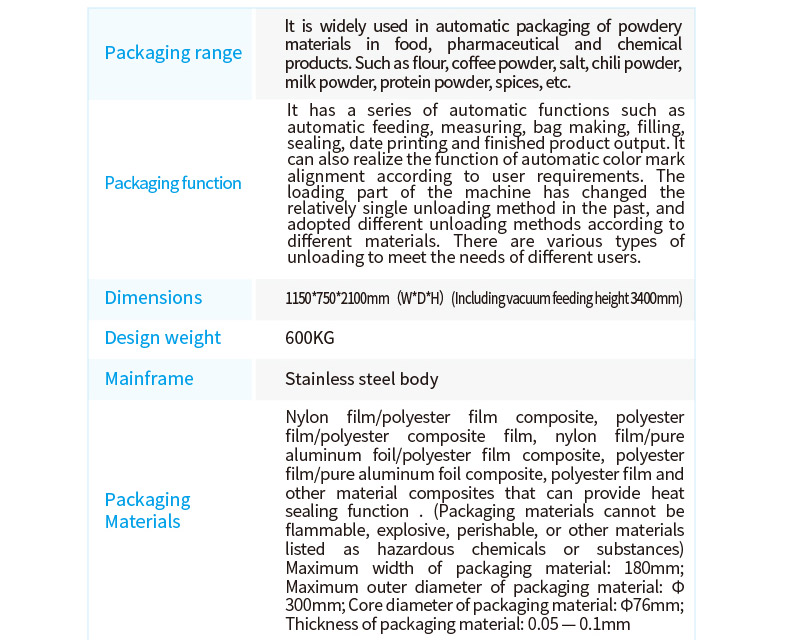

Packing range：Widely used in automatic packaging of loose, non-sticky powder-like materials in food, pharmaceutical and chemical products. Such as granules, instant coffee, MSG, sugar, desiccant, etc.

Basic structure

Dimensions：Width*Depth*Height 1150*750*2100mm

design Weight：600KG

Mainframe

Stainless steel body

Packaging Material requirements：Nylon film/polyester film composite, polyester film/polyester composite film, nylon film/pure aluminum foil/polyester film composite, polyester film/pure aluminum foil composite, polyester film and other material composites that can provide heat sealing function. Maximum width of packaging material: 180mm. Maximum outer diameter of packaging material: Φ300mm. Core diameter of packaging material: Φ76mm. Thickness of packaging material: 0.05 — 0.1mm

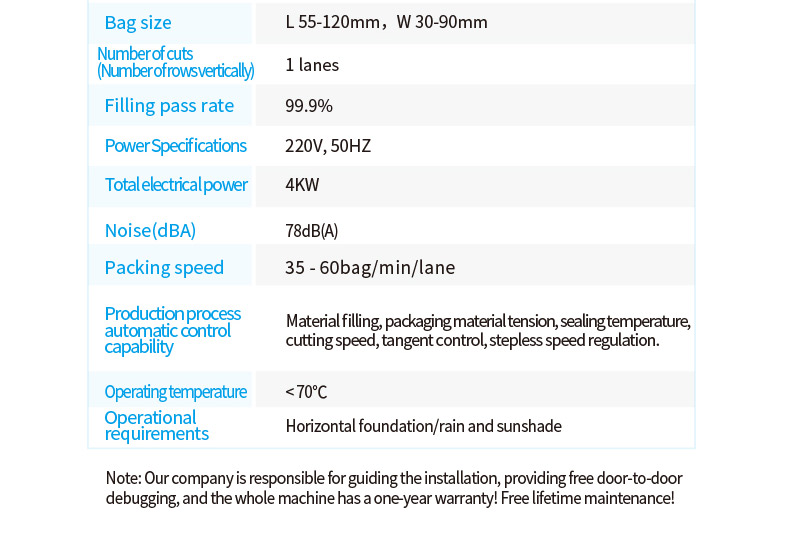

Bag size： Length: 55-120mm, Width: 30-90mm

Device parameters

Power Specifications：220V, 50HZ

Total electrical power：4KW

Noise ：78dB(A)

Packing speed： 35-60 bag/min
