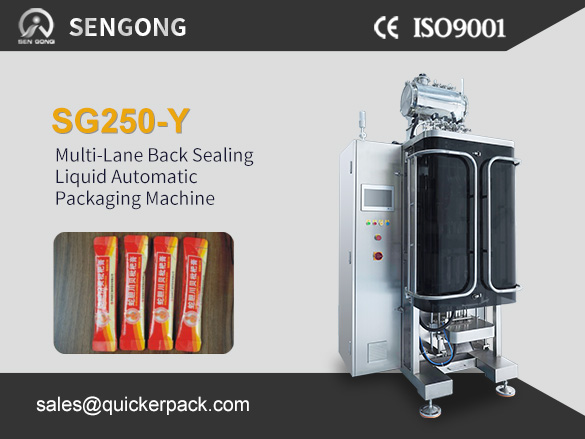

SG250-Y Multi-Lane Back Sealing Liquid Automatic Packaging Machine

G250-Y Multi-Lane Back Sealing Liquid Packaging Machine

Detailed parameters and configuration

Equipment introduction

SG250-Y multi-lane back-sealing liquid automatic packaging machine is a high-quality, high-performance, high-efficiency fully automatic packaging machine independently developed by our company. It can automatically complete feeding, measuring, batch number printing, bag making, filling, sealing, easy-tear shearing, cooling cutting and finished product output and a series of fully automatic functions. It is an economical equipment with a small space.

This machine adopts PLC program control, advanced touch human-machine interface, key point servo system drive, color mark photoelectric automatic tracking, PID digital constant temperature control system, etc., making the operation of the whole machine simpler and more complete. Greatly improve the production efficiency, and reduce labor costs. There is no need to trim the edges on both sides of the packaging material, which reduces material usage costs.

Composition

Classification parameters SG250-Y

scope function

Packaging range

Widely used in automatic packaging of liquid materials in food, medicine and chemical products. Such as sauce, oil, honey, jam, water, juice, ketchup, mayonnaise, salad dressing, chemical liquid, medicinal liquid, etc.

basic structure

Dimensions:Width*Depth*Height 1260*1550*2700mm (Height is adjusted according to the material feeding method)

Design weight 1000KG

Mainframe Stainless steel body

Packaging material parameters

Packaging Materials

Nylon film/polyester film composite, polyester film/polyester composite film, nylon film/pure aluminum foil/polyester film composite, polyester film/pure aluminum foil composite, polyester film and other material composites that can provide heat sealing function. Maximum width of packaging material: 250mm. Maximum outer diameter of packaging material: Φ400mm. Core diameter of packaging material: Φ76mm. Thickness of packaging material: 0.05 — 0.1mm

Maximum single film width 120mm

Maximum bag length 180mm

Device parameters

Power Specifications 220V, 50HZ

Total electrical power 3-5KW

Compressed air pressure 0.6～0.8Mpa

Compressed air consumption 0.8m³/min

Noise(dBA) 78dB(A)

Packing speed 0-60 bag/min/lane
